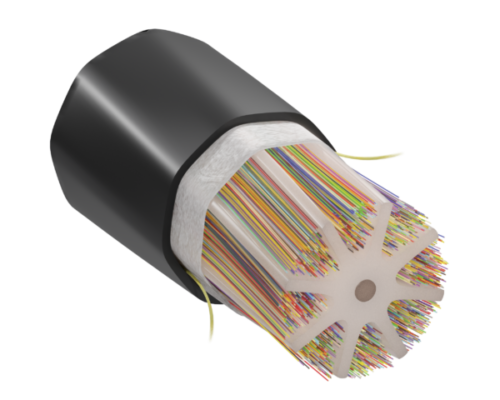

Freeform Ribbon™ OSP Slotted-Core Cables
Sumitomo Electric’s Freeform Ribbon™ Ultra-High Fibre Count OSP Slotted-Core offers the highest fibre count available in a robust construction.
All-dielectric construction available.
Dry cable construction and Sumitomo Electric’s ribbon-splicing technology afford huge savings in deployment time and cost.
Features
- Bar-coded fibre ribbons for easy identification
- Freeform Ribbon™ for high fibre density
- Options for both 250
µmand 200µmfibres - Gel-free water-blocking construction to simplify cable preparation
- Non-preferential bending allows easy installation in space-constrained areas
- 12-fibre ribbons for compatibility with multi-fibre connectors
- Splice capability with single fibres
- Robust for harsh installation environment
- Sumitomo Electric’s G.657.A1 fibre
- SZ or Helically stranded
Specifications
| 250μm | ||||
|---|---|---|---|---|
| Fibre Count | Part Number | Nomincal Cable OD | Fibres per Ribbon | No. of Slots |
| 288f | DRSC-OSP6-SA00288-250-ADEROL | 17.0mm | 12f | 6 |
| 432f | DRSC-OSP6-SA00432-250-ADEROL | 20.0mm | 12f | 6 |
| 864f | DRSC-OSP6-SA00864-250-ADEROL | 23.5mm | 12f | 6 |
| 1,152f | DRSC – GNS – 15021 | 24.9mm | 12f | 6 |
| 1,728f | DRSC-13079SA0001728-B | 25.9mm | 12f | 6 |
| 3,456f | DRSC-OSP6-SA003456-250-ADE | 32.0mm | 12f | 6 |
| 200μm | ||||
|---|---|---|---|---|
| Fibre Count | Part Number | Nomincal Cable OD | Fibres per Ribbon | No. of Slots |
| 1,728f | DRSC-OSP6-SA001728-200-ADE | 25.0mm | 12f | 6 |
| 6,912f | DRSC−OSP8−SA06912−200−ADE | 37.0mm | 12f | 8 |
Ordering Information
Instructions: please refer to the ‘Specifications‘ table for part numbers.
