Terrestrial Long-Haul
Ultra-Low Loss Terrestrial Long-Haul Fibres
- G.654.C / G.652.B. Pure silica core single mode optical fibres: PureAdvance™ 80
- G.654.E. Advanced pure silica core single mode optical fibres: PureAdvance™ 110 | PureAdvance™ 125
- World’s best performance in terrestrial fibres
- Pioneer of pure-silica-core fibres
- Excellent connectivity with submarine fibres
Game Changer for the Future of Long-Distance Networks
Current optical fibre cables can only satisfy the long-term transmission capacity requirements of European data centres at a much higher cost and with a negative impact on the environment.
To explore a new proposal for long-haul optical network cables that aims to overcome the limitations of data transmission and meet the increasing demands of data centres, please refer to the following G.654.E Fibre Cable whitepaper.
Features

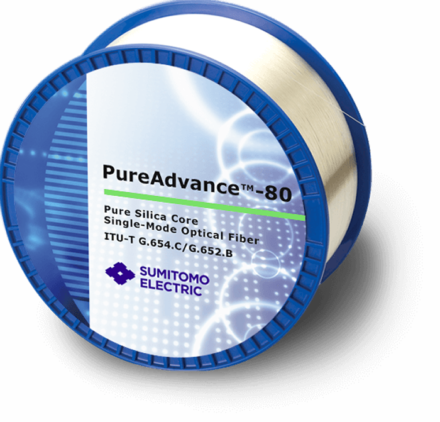

PureAdvance™ 80 | G.654.C / G.652.B
Pure Silica Core Single Mode Optical Fibre
- Low attenuation of ≤ 0.17 dB/km and MFD compatible with standard G.652 SMFs
- For terrestrial metro and long-haul networks
- Applicable for high-density terrestrial cables

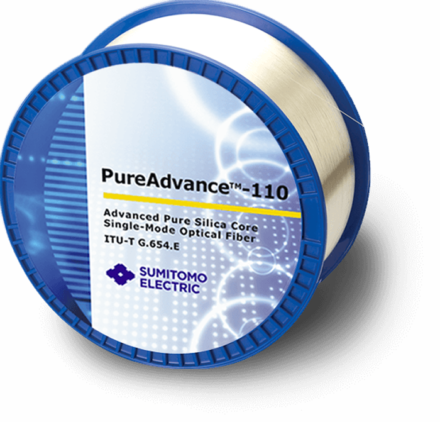

PureAdvance™ 110 | G.654.E
Advanced Pure Silica Core Single Mode Optical Fibre
- Ultra-low attenuation of ≤ 0.16 dB/km and optimally enlarged effective area of 110
μm2 - For terrestrial long-haul 100Gbit/s, 200Gbit/s, 400Gbit/s and beyond digital coherent transmission systems
- Applicable for high-density terrestrial cables

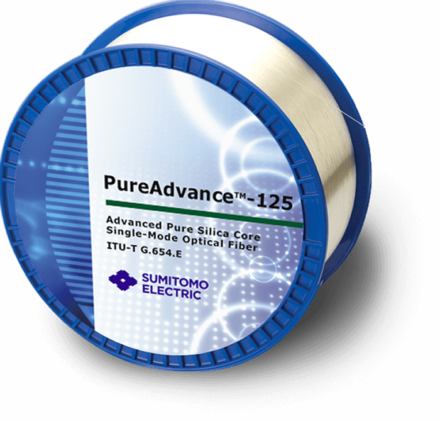

PureAdvance™ 125 | G.654.E
Advanced Pure Silica Core Single Mode Optical Fibre
- Ultra-low attenuation of ≤ 0.16 dB/km and enlarged effective area of 125
μm2 - For terrestrial long-haul 100Gbit/s, 200Gbit/s, 400Gbits/s and beyond digital coherent transmission systems
Product Comparison
| Product Name | PureAdvance™ 80 | PureAdvance™ 110 | PureAdvance™ 125 |
|---|---|---|---|
| ITU-T Compliance | G.654.C / G.652.B | G.654.E | G.654.E |
| MFD at 1550nm | 10.1 ± 0.7μm | 11.7 ± 0.7μm | 12.5 ± 0.7μm |
| Effective area (typical) at 1550nm | 85μm2 | 110μm2 | 125μm2 |
| Attenuation at 1550nm | ≤ 0.17 dB/km | ≤ 0.16 dB/km | ≤ 0.16 dB/km |
| Attenuation (typical) at 1550nm | 0.165 dB/km | 0.156 dB/km | 0.156 dB/km |
| Cable cut-off wavelength (λcc) | ≤ 1530nm (G.654.C) ≤ 1260nm (G.652.B) | ≤ 1530nm | ≤ 1530nm |
| Possible applications | • Metro • Long-haul • High density cable | • Long-haul • Inter data centre • Connection with submarine landing station • High density cable | • Long-haul • Inter data centre • Connection with submarine landing station |
Ordering Information
Please Contact Us for further information.
